产品详细
- 产品名称:利雅路Riello燃气燃烧机
- 产品型号:RS190
- 产品分类:意大利Riello利雅路燃烧机
- 商品点击数:956
Riello利雅路燃烧机之燃气/利雅路燃烧机/利雅路燃烧机配件 RS190
深圳永宏光代理进口燃烧机及燃烧机配件，销售原装利雅路天然气燃烧机，利雅路天燃气燃烧机，利雅路液化气燃烧机，利雅路燃气燃烧机查询利雅路燃烧机型号和利雅路价格,欢迎致电0755-28903350。
|

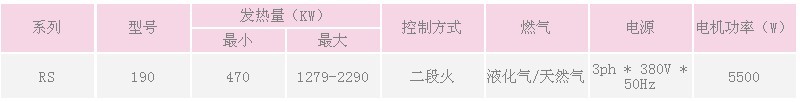

产品详细说明 |
|

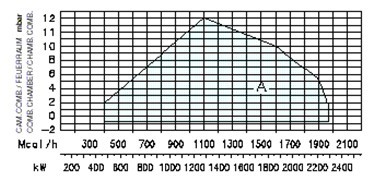

工作范围 |
|
燃烧器尺寸 |
| RS/M | 70 | 100 | 130 | 190 |
| A | 201/8" (511mm) | 203/4" (527mm) | 2125/32" (553mm) | 2613/16" (681mm) |
| B | 1121/32" (296mm) | 129/32" (311mm) | 135/16" (338mm) | 1413/32" (365mm) |
| C | 815/32" (215mm) | 815/32" (215mm) | 815/32" (215mm) | 1213/32" (315mm) |
| D | 2127/32" (554mm) | 2127/32" (554mm) | 2127/32" (554mm) | 2127/32" (554mm) |
| E | 331/6" (842mm) | 331/16" (839mm) | 331/16" (839mm) | 3311/16" (855mm) |
| F - F1* | 927/32" (250mm) - 155/32" (384mm) | 927/32" (250mm) - 155/32" (384mm) | 111/32" (280mm) - 1611/32" (415mm) | 1421/32" (372mm) |
| G | 71/32" (178mm) | 71/32" (178mm) | 73/32" (180mm) | 83/4" (222mm) |
| H | 1629/32" (429mm) | 1629/32" (429mm) | 1629/32" (429mm) | 1615/16" (430mm) |
| I | 4511/16" (1160mm) | 4511/16" (1160mm) | 4511/16" (1160mm) | 5121/32" (1312mm) |
| L | 813/32" (213mm) | 813/32" (213mm) | 813/32" (213mm) | 91/16" (230mm) |
| M | 59/32" (134mm) | 59/32" (134mm) | 59/32" (134mm) | 529/32" (150mm) |
| N | 811/16" (220mm) | 811/16" (220mm) | 811/16" (220mm) | 75/16" (185mm) |
| O | 2" (50mm) | 2" (50mm) | 2" (50mm) | 2" (50mm) |
